Threads - Stub Acme Thread Design

Find: [explain]
From a stub acme thread callout, find:
    (a) thread geometry

Known:

Basic Diameter DBasic in
Threads Per Inch TPI
Yield Strength Pin YSPin ksi
Yield Strength Box YSBox ksi
Total Length of Engagement LE in
Pin ID max IDPin,max in
Box OD min ODBox,min in
Class   Stub Acme
Style   2G
Tension Angle   14.5 degrees
Compression Angle   14.5 degrees
Friction Coefficient   .13

Schematics:

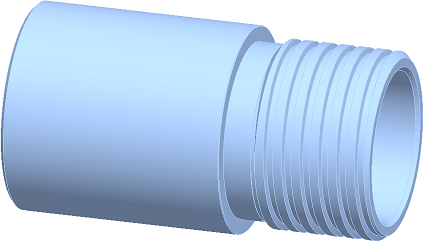

Thread Profile

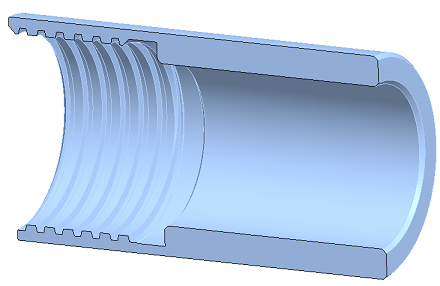

Thread Profile
